Google Analytics

Overview

Integrating VWO Feature Experimentation with GA4 offers powerful benefits. VWO Feature Experimentation sends feature flag and event data directly to GA4, allowing you to see which feature flag variations users encounter during their sessions. This enables you to correlate user behaviour and performance metrics with specific experiments and feature rollouts. As a result, you can better understand how new features impact key KPIs like retention, engagement, and conversion:

Prerequisites

VWO FME SDK Installation and Configuration

Ensure you have the VWO Feature Management and Experimentation product enabled for your VWO account.
The VWO FME SDK should be properly installed in your Node.js project.

Set your VWO account ID and SDK key in your application's constants in .env file:

VWO_ACCOUNT_ID=vwo_account_id
VWO_SDK_KEY=vwo_sdk_key
VWO_FLAG_KEY=flag_key
VWO_FLAG_VARIABLE_1_KEY=flag_variable1
VWO_FLAG_VARIABLE_2_KEY=flag_variable2
VWO_EVENT_NAME=event_name
VWO_LOG_LEVEL= DEBUG # DEBUG, INFO, WARN, ERROR

GA4 Account Setup

Create a GA4 account at analytics.google.com if you don't already have one
Create a new project in your GA4 dashboard
Obtain your GA4 api_secret and measurement_id from the project settings,
- api_secret can be ound under Admin > Data Streams > Choose your stream > Measurement Protocol > Create .
- Measurement_id can be found under Admin > Data Streams > Choose your stream > Measurement ID.

Configure api_secret and measurement_id in the following curl.

curl --location 'https://www.google-analytics.com/mp/collect?api_secret=apiSecret&measurement_id=measurementId' \
--header 'Content-Type: application/json' \
--data '{
    "client_id": "REPLACE_WITH_ACTUAL_CLIENT_ID",
    "events": [
        {
            "name": "jsonEvent",
            "params": {
                "campaign_id": "properties.campaignId",
                "variation_id": "properties.variationId",
                "campaign_name": "properties.campaignName",
                "variation_name": "properties.variationName"
            }
        }
    ]
}'

📘
Refer to this google doc to get more information.

Required Dependencies

Add the following dependencies to your app:

# via npm
npm install vwo-fme-node-sdk --save

# via yarn
yarn add vwo-fme-node-sdk

Integration Steps

Integrating the VWO FME SDK with analytics platforms like GA4 allows you to automatically send feature flag evaluation and event tracking data to your analytics dashboard. This is achieved using the IntegrationCallback provided by the FME SDK.

Clone the VWO FME Examples from GitHub

git clone https://github.com/wingify/vwo-fme-examples.git

Change directory to node
```
cd vwo-fme-examples/node
```
Open the project in an IDE and open the file vwoHelper.ts . It's located insidesrc > utils

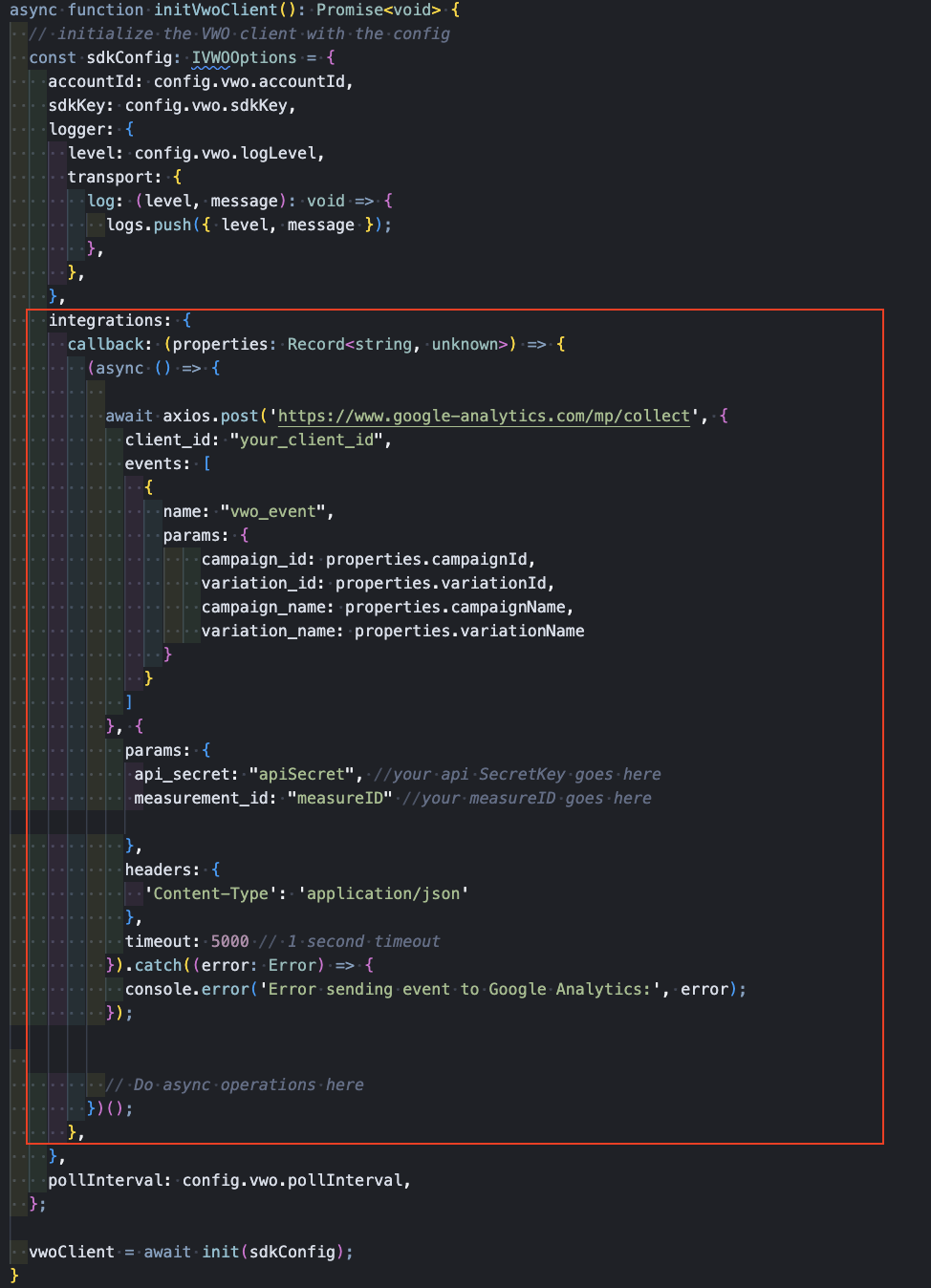

Inside the vwoHelper.ts file, you will find the initVwoClient method. Within this method, there is a constant named sdkConfig. Within sdkConfig, there is an integration object that requires the GA4 API to be invoked through the integration callback to send events to GA4.

Integration Data

The IntegrationCallback receives a properties: Record<string, unknown> containing details about the VWO SDK action:

For flag evaluations (i.e. getFlag):

{
  featureName: "flag_name",
  featureId: 5,
  featureKey: "flag_key",
  userId: "user_id",
  ...
}

For event tracking (trackEvent):

{
  eventName: "yourEventName",
  api: "track"
}

How to see the data in the analytics tool

To see real-time events flowing into your Google Analytics 4 (GA4) property, follow these steps:

Log in to Google Analytics:
Go to the Google Analytics website and log in with your Google account that has access to the GA4 property.
Select Your GA4 Property:
Once logged in, ensure you have selected the correct GA4 property from the dropdown menu at the top left of the interface (usually next to the Analytics logo). It will typically show the property name and ID.
Navigate to Realtime Report:
- In the left-hand navigation menu, look for the Reports section.
- Under Reports, click on Realtime.
Observe Realtime Data:

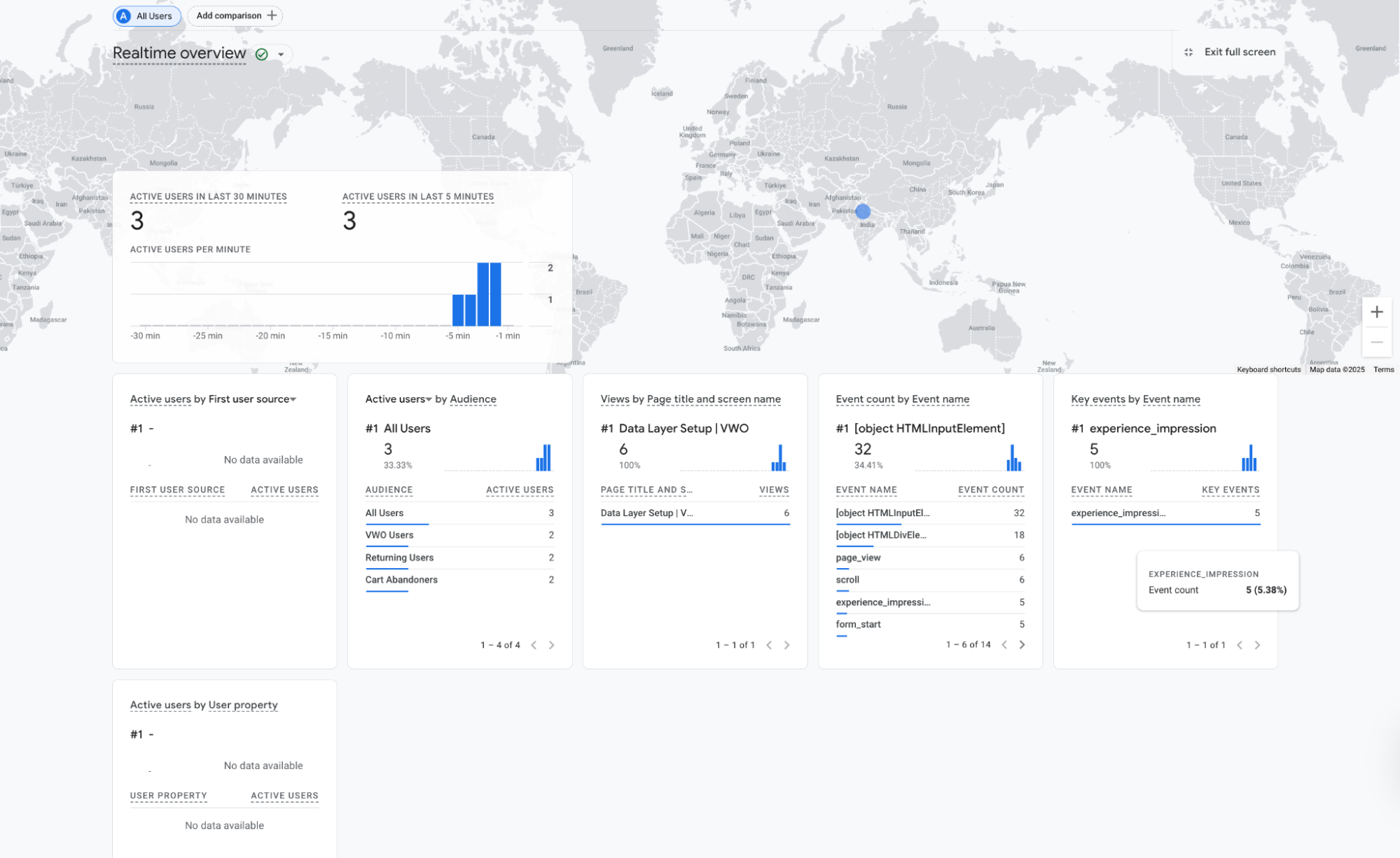

To view real-time data in Google Analytics 4 (GA4), scroll to the bottom of the left-hand menu, click Reports, then select Realtime Overview. This gives you a live snapshot of user activity on your website or app.

Key Highlights:
1. Active Users in the last 30 minutes and 5 minutes
2. User Locations displayed on a world map
3. Top Pages & Screens currently being viewed
4. Live Events like page views, form starts, and impressions
5. Audience Segments such as returning users or cart abandoners
